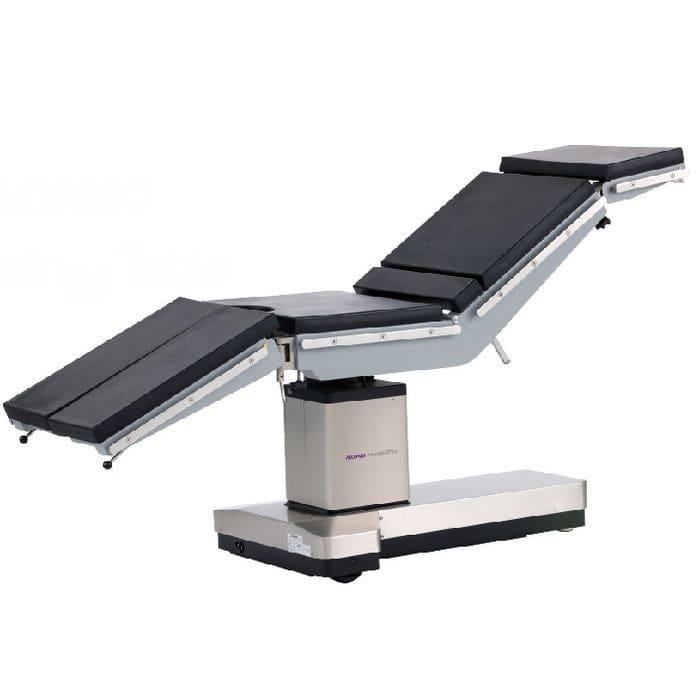

OP830 Operating Table

Electro-hydraulic operating table with a five-section radiolucent top, for patients up to 297 kg.

OP830 Operating Table
OP830

OP830 Operating Table

Electro-hydraulic operating table with a five-section radiolucent top, for patients up to 297 kg.

At a glance
Model: OP830
Brand: AEONMED
Category: OT Equipment
Request a quote Back to Products OT Equipment
Specifications

Technical Specifications

Type Electro-hydraulic Operating Table
Table Length 2020 mm
Table Width (without side rails) 520 mm
Table Height (without pads) 680–950 mm
Trendelenburg / Reverse Trendelenburg 30° / 30°
Lateral Tilt (Left / Right) 20° / 20°
Back Plate Adjustment Up 75° / Down 25°
Head Plate Adjustment Up 30° / Down 45°
Leg Plate Adjustment Up 5° / Down 90°
Leg Plate Separation 180°
Kidney Bridge Elevation 136 mm
Longitudinal Shift 300 mm (optional)
Maximum Patient Weight Capacity 297 kg
Tabletop Sections 5 sections
Tabletop Material Radiolucent tabletop; configuration-dependent
Frame Material Specially coated metal frame
External Stainless Steel SUS304
Operation Electro-hydraulic
Control Handheld controller
Safety System Automatic control-panel shutdown after inactivity
Mobility Mobile base with caster wheels
Battery Built-in rechargeable battery
Accessories Armrests, shoulder supports, knee crutches, body strap and anesthesia screen (depending on configuration)
